Description
4G 16 Ports IP Proxy SIM Router
The SIM proxy wan router is a routing product independently, Which offer an efficient multi-IP solution. It’s used to provide access to the Internet via different SIMs. With API you can easily apply it in different scenarios. In addition to basic functions such as routing, it also support socks 5 proxy, http&https proxy, port forwarding, sms sending and receiving and so on. It has the characteristics of economy, security and efficiency.
Special Features
• Support TCP/IP, DHCP and other protocols
• Support static routing settings
• API of Multi Wan-port Control
• Support firewall settings
• SupportSocks5, HTTP&HTTPS proxy
• Support Redial to change Proxy IP/ API to Redial (IP Rotate)
• Support VPN
• Support IMEI Change
• Support port forwarding
• Support SMS sending and receiving
• Support SMPP/ SMS HTTP API
• Support USSD Inquiry/ AT Command
• Support ETMS (Remote Device Web Management)
Specification:
|
Product Name |
16 Ports IP Proxy SIM Router |
|
Number of Proxy |
16 Porxy |
|
Frequency |
4G FDD-LTE, TDD-LTE, WCDMA, GSM |
|
LTE Module Catalogue |
LTE CAT4 |
|
LTE CAT4 Module Speed |
150M (download)/ 50M (upload) |
|
Function |
Access to the Internet via different SIMs SMS Send & Receive IMEI Change AT Command API HTTP Control IP Change IP Rotate Remote Proxy |
|
Feature |
Create Proxy Via SIMs via HTTP or Sock5 protocol |
|
SMS Sending Speed/hour |
9600 SMS /hour(16 SIMs) |
|
Protocol |
TCP/ IP, DHCP, Socks5, VPN, NTP, Telnet/HTTP/FTP/TFTP |
|
Power |
12V/5A |
|
Wan Ports |
1 |
|
LAN Ports |
3 |
|
Indicator |
“Power” “Wan” “SIM Status” “Lan” |
|
Operation System |
Windows/Vista/XP/Win7/Win8/Win9/Win10/Linux/Mac OS X |
|
Dimension |
25*15*5CM |
|
Weight |
4KG |
|
Warranty |
1 Year |
 |
 |
|

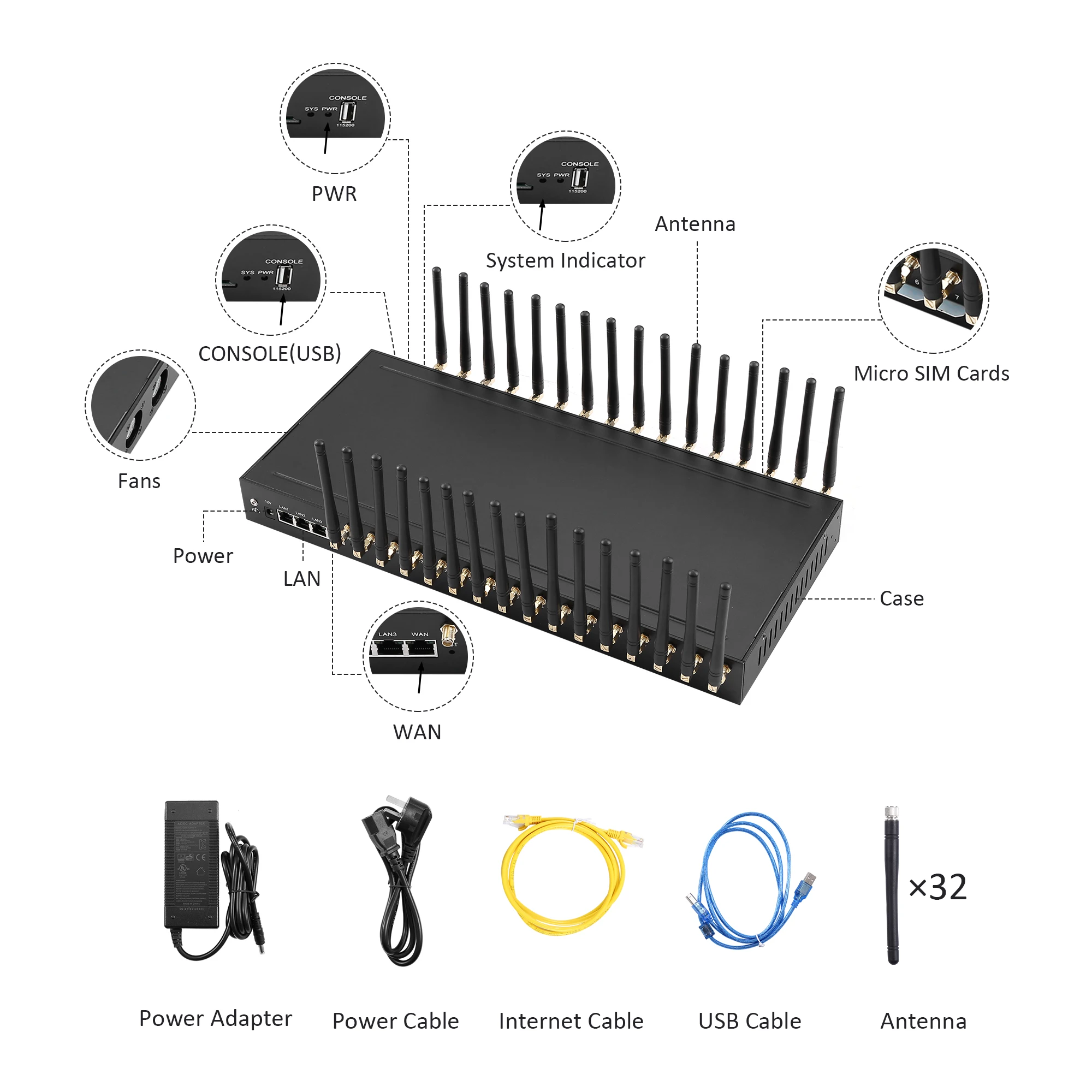

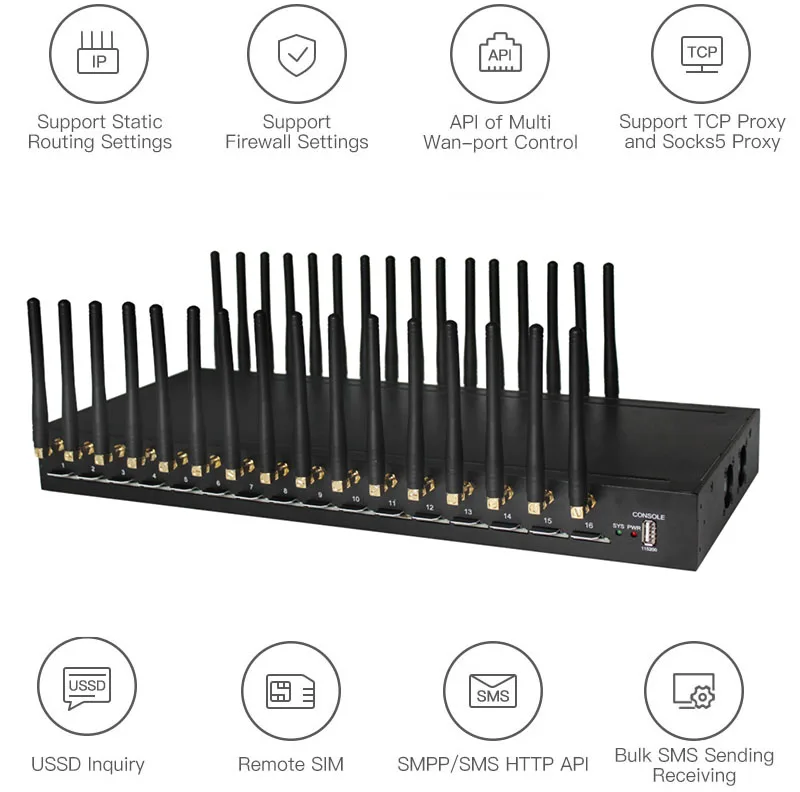

Front panel:
• 16 SIM slots • 1 Power light (indicate the status of the power connection) • 2 fans • 1 Console Interface (USB to Serial, Baudrate 115200) |

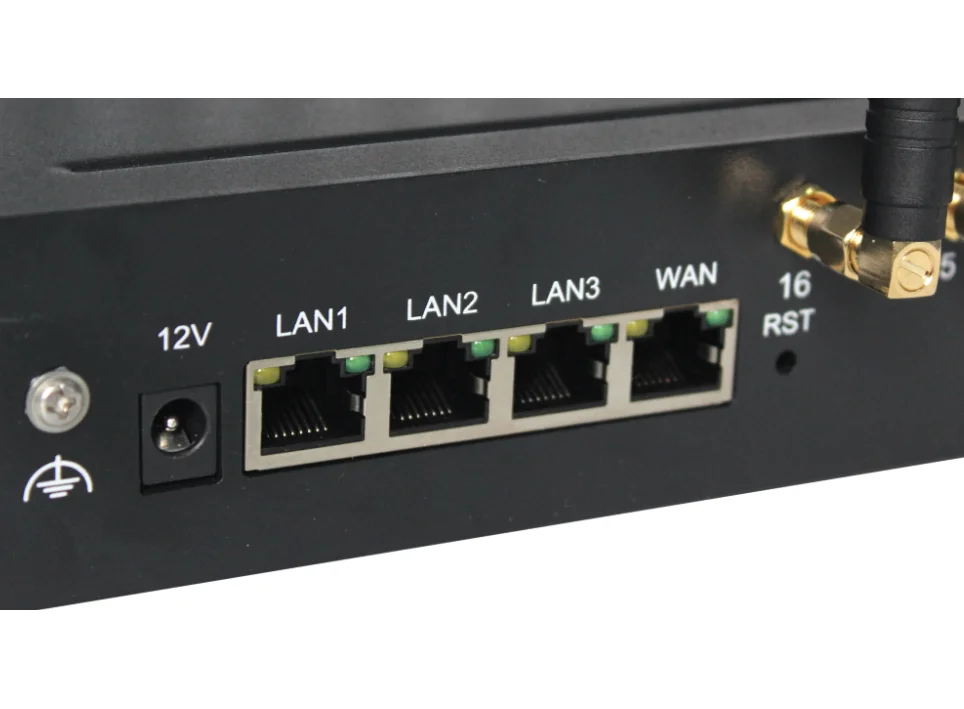

Back panel:
• 1 Ground connection • 1 reset button (press RST button about 10s will restore to factory settings) • 1 Power Interface (DC 12V 5A) • 4 Network Interface (3 LAN and 1 WAN, RJ45) • 32 Antenna Connector |

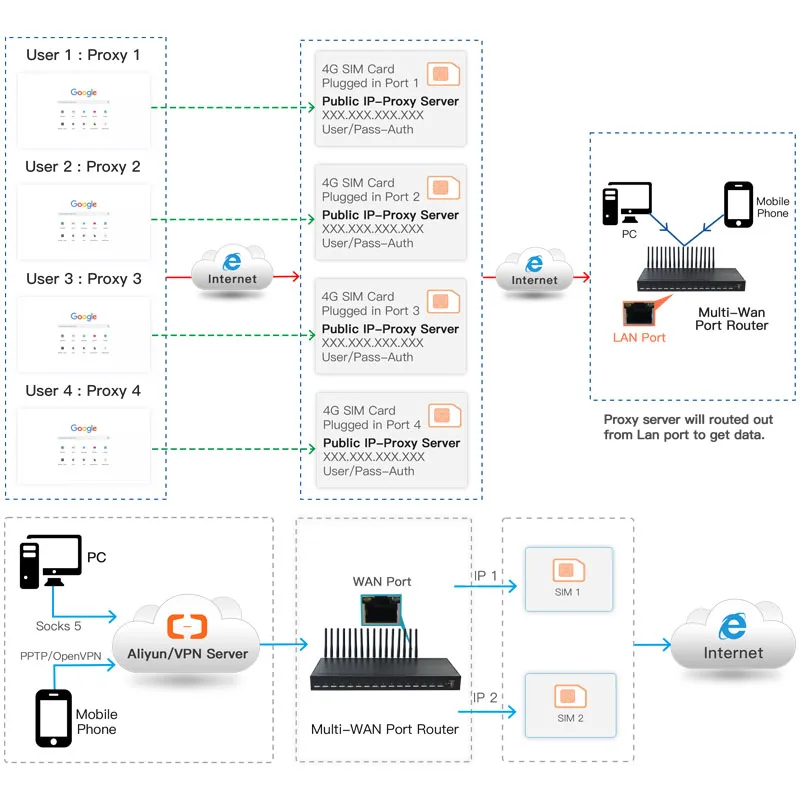

Application:
Benefits of Using Proxy Servers
1. Proxy server helps the clients to protect their important information from getting hacked by hackers.
2. A proxy server is also used in bypassing blocked websites. It happens many a time that in some offices or schools or in any organizations they blocked some of the websites for their own reasons. Also, many websites have some country restrictions. In those cases, if you want to access those websites, the proxy server will help you in doing that.
3. The proxy server is also used to enhance the security and privacy level of the client’s device while doing surfing using
different proxies.
4. Proxy server many times used for speeding up the browsing and access data, because of their good cache system.
5. As the cache system of the proxy server is very good, when you access any websites using a proxy server, it is having the chance to store your desired data in their cache system. And as a result, you can access them whenever you want.
Frequency:
4G model:
|
Module |
Frequency |
Suitable for Countries or Regions |
|
EC25-EUX (EC25-EC) |
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 |
Europe, Africa, Asia, Middle East, United Arab Emirates, Turkey Philippines |
|
EC25-AFX |
LTE-FDD:B2/B4/B5/B12/B13/B14/ B66/B71 WCDMA:B2/B4/B5 |
USA( T-Mobile/ Simple/ Verizon/ AT&T/ U.S.Cellular), Canada |
|
EC25-AUX |
LTE-FDD:B1/B2/B3/B4/B5/B7/B8 /B28 LTE TDD:B40 WCDMA:B1/B2/B5/B8 GSM:B2/B3/B5/B8 |
Australia, New Zealand, South America, Colombia, Mexico, America(T-Mobile) |
|
EC25-J |
LTE FDD:B1/B3/B8/B18/B19/B26 LTE TDD:B41 WCDMA:B1/B6/B8/B19 |
Japan |
|
EC20-CE |
FDD LTE: B1/B3/5 TDD LTE: B38/B39/B40/B41 WCDMA: B1 TD-SCDMA: B34/B39 CDMA2000: BC0 GSM: 1X/EVDO, 900/1800 |
India |
|
EG25-G
|
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12
/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
All Over the world (Expensive Module) |
Gateway Web Management
How to log in Web Management?
Open the web browser and type the IP address. If it is the first time you login the gateway, please use the default settings below:
IP Address: 192.168.1.67
Account: admin
Password: admin
Following are the pages of gateway web management:

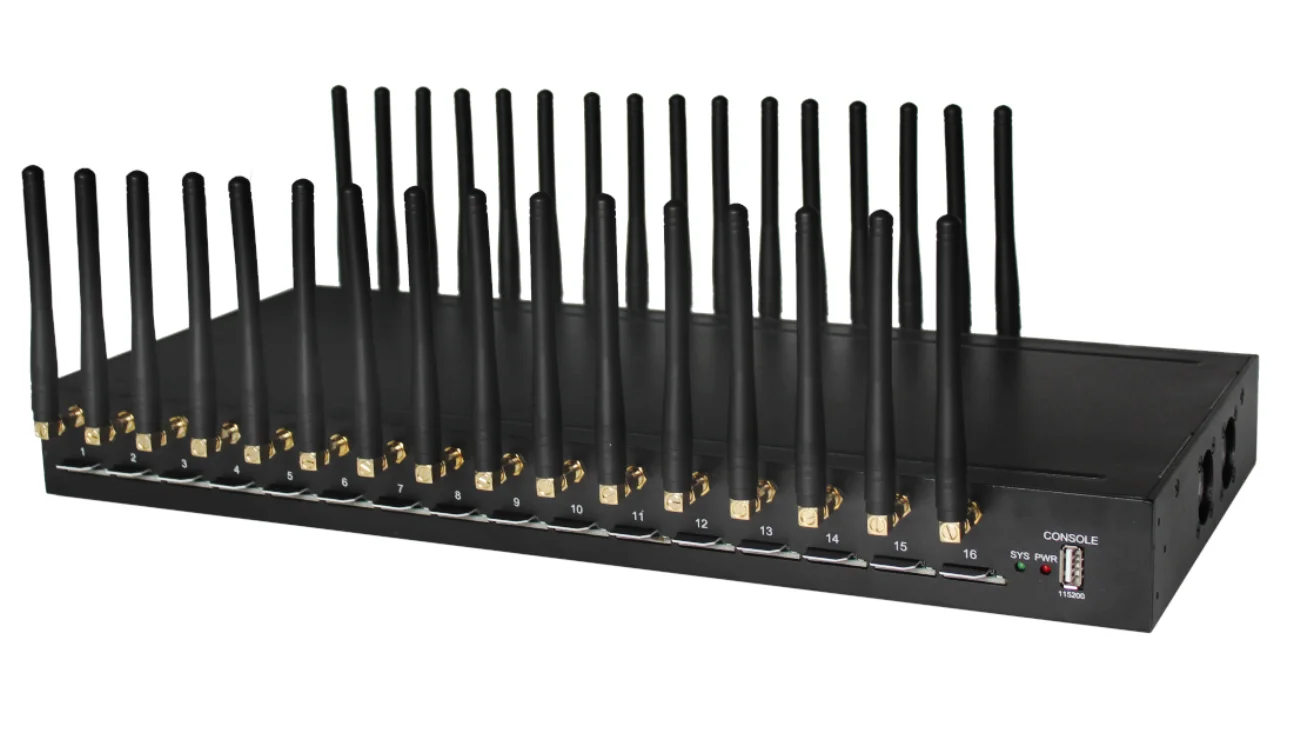

Detail Pictures

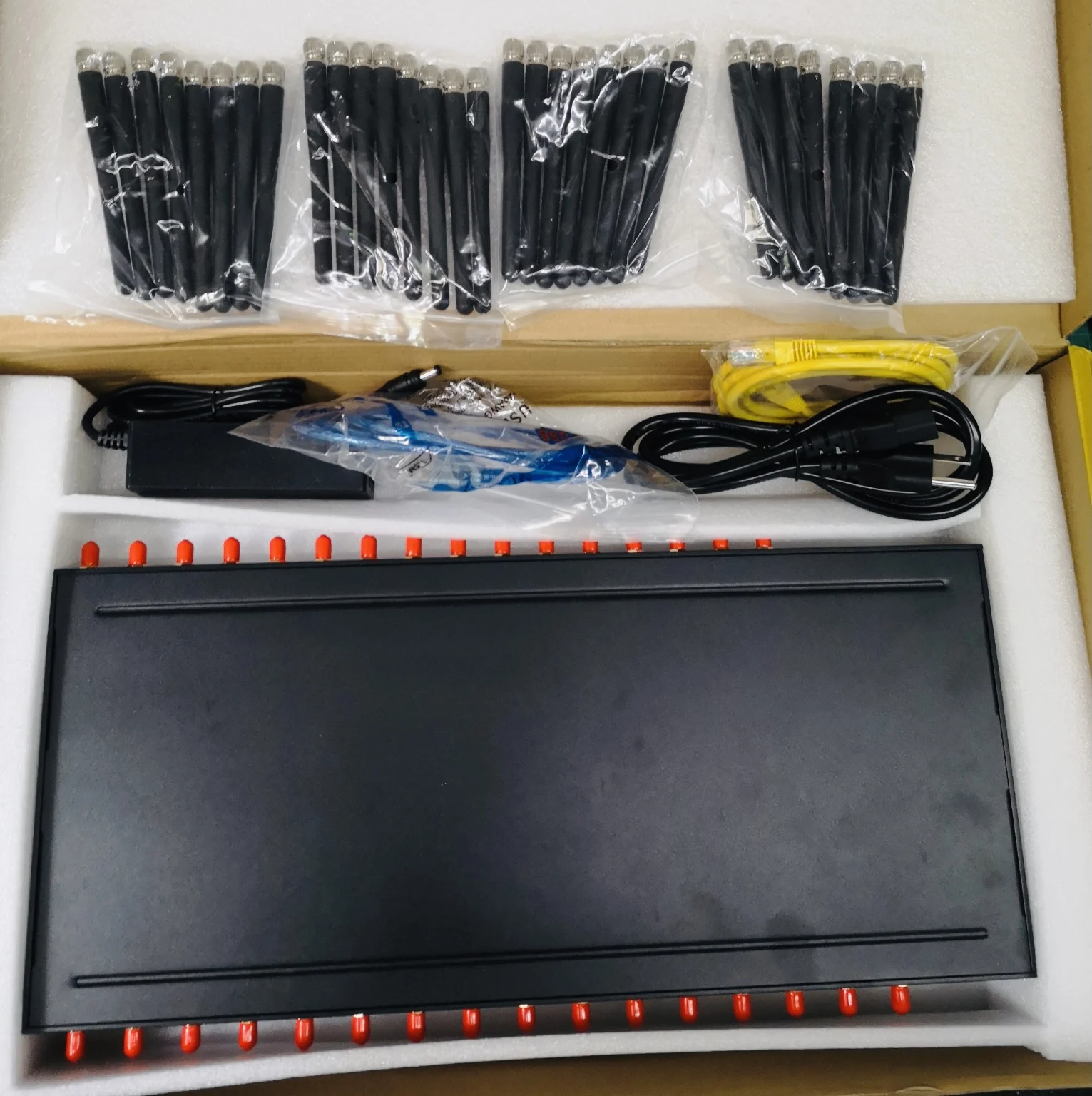

Packing & Shipping
Packing List:
(1) 16 Port IP Proxy Router x 1
(2) USB Cable x 1
(3) Network Cable x 1
(4) Power Supply Adapter x 1
(5) Antennas x 32
|
Trade Terms |
FOB, CFR, EXW, DAP |
|
Payment Terms |
Alixpress/Alibaba via Credit Card/Paypal, Bank Wire, T/T, USDT, BTC |
|
Payment Condition |
100% deposit in adavance |
|
Delivery Time |
1-3 days after full payment |
|
Packing |
Strong Carton Box with Water Proof |
|
Shipping |
DHL, UPS, EMS, FEDEX, ARAMEX, TNT or Other Way As You Require |
FAQ
Q: 1. What’s the main function of proxy gateway?
A: It offer an efficient multi-IP solution and used to provide access to the Internet via different SIMs.
Q: 2. How can I start my proxy business?
A: For proxy business, you need proxy device ,sim cards and internet router.
Use for yourself: Configure HTTP or Sock5 Proxy Port with your browser or APP
Sell to Clients: Develop your Website and API Connect with Proxy Router to sell IP
Q: 3. How can I start sms business?
A: For sms business, you need devices , server , sms platform, sim cards and internet. our company can provide devices, sms platform, like EIMSII server. Our tech team will help to set up your system to get test with your sms routes.
And we have Live SMS Traffic to Vietnam, India, USA, Indonesia, Nigeria, Spain, Germany, France, Phillipines, Australia, New Zealand, Canada, UK, UAE, Bangladesh, Thailand, and European regions. If you have sim cards and interested in sms business for huge profit, please contact me!!
Q: 4. If I face some issues about the devices , how can i solve it ?
A: All device has one year warrantly and we will provide you with tech support all time to fix your problems.
Q: 5. How about our service?
A: We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.
Q: 6.What is our main express shipment?
A: DHL,UPS,FEDEX,TNT,EMS,Aramex(can ship to anywhere all over the world)
Q: 7.If I need more ports , any device?
A: We have 4/8/16 Proxy Device to expand your business.
Q: 8.During warranty time,if have problem,how to do?
A: We’ll test by teamview or send back, we’ll exchange new in free.
